Threaded Shank Aircraft Drills

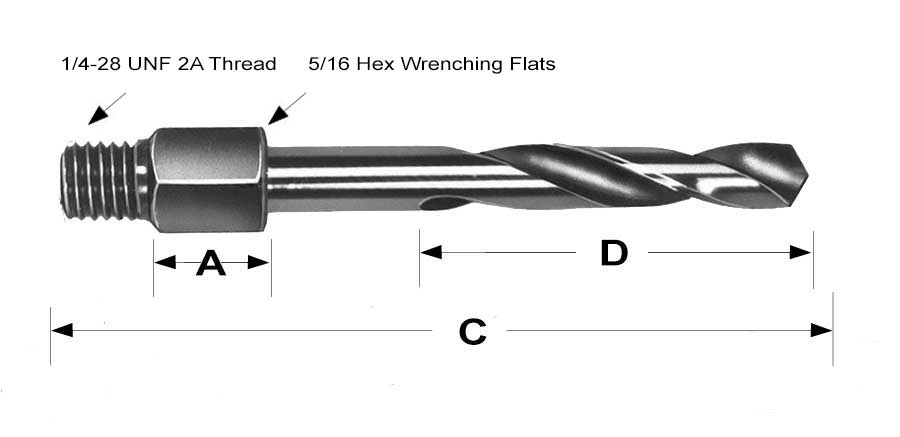

THREADED SHANK AIRCRAFT DRILLS

CATALOG NO.
CA4705

DRILL SIZE
SERIES
A
B
C
#40 TO 1/8"
STUB
1/8
1/2
5/16
SHORT
1/4
1
9/16
LONG
1/4
2-1/8
7/8
#30 TO #10
STUB
1/8
9/16
5/16
SHORT
1/4
1-1/4
9/16
LONG
1/4
2-1/8
1-1/8
#9 TO F
STUB
1/4
5/8
5/16
SHORT
5/16
1-1/4
9/16
LONG
5/16
2-1/8
1-1/8

ORDER BY CATALOG NO., LENGTH, THREAD, AND SIZE
LENGTHS: SHORT SERIES, LONG SERIES, EXTRA SHORT
THREAD: 5-40, 10-32, 1/4-28
SIZE RANGE: #1 TO #50, 1/16 TO 3/8, A TO W
FOR USE IN ALL TYPES OF ANGLE AND FLEXIBLE DRIVE DRILLING ATTACHMENTS.
