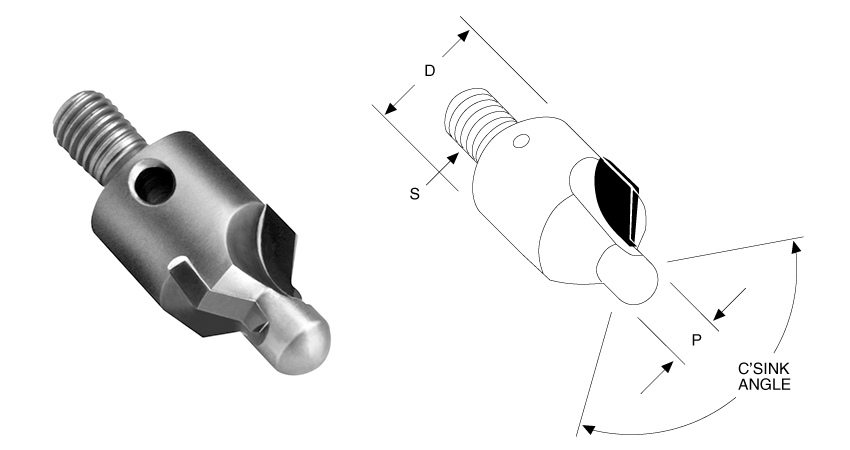

Carbide Tipped Integral Pilot

150 CT Series

Integral pilot, threaded shank

150CT SERIES
is similar in design to the 150 Series high speed steel cutters. They excel in cutting highly abrasive materials, the “difficult to machine” materials and in cutting material where longer tool life is desired. The tool body is made of high speed steel. Two flute 100 degree angle is standard. Three flute and special angles subject to quote.

150 CT SERIES
TOOL NUMBER
"D" BODY DIA.
"S" SHANK SIZE
PILOT RANGE
150CT
3/8
1/4-28
3/32 - 3/16
151CT
7/16
1/4-28
3/32 - 3/16
152CT
1/2
1/4-28
3/32 - 1/4
153CT
5/8
1/4-28
5/32 -5/16
155ACT
3/4
3/8-24
1/4 - 3/8
156ACT
7/8
3/8-24
1/4 - 7/16
157ACT
1
3/8-24
5/16 - 1/2


M150 CT SERIES (METRIC)
TOOL NUMBER
"D" BODY DIA.
"S" SHANK SIZE
PILOT RANGE
M152CT
14
M8 X 1
2.38 - 6.35
M153CT
17
M8 X 1
3.96 - 8.00
M155CT
21
M8 X 1
6.35 - 10.00


HOW TO ORDER THREADED SHANK INTEGRAL PILOT COUNTERSINK CUTTERS
When ordering please specify: Tool number, Number of flutes, Material, Included angle and Pilot diameter
Example: 152 - 2CT - 100° - 3/16 = 1/2 x 100 x 3/16, Carbide tipped, 1/4-28, 2flute.
Standard pilot diameters 3/32, 1/8, 5/32, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, #40, #30, #21, #11, #10
