Straight Shank Piloted

350 Series

350 Series these tools are made to the same specifications as our 150 Series countersinks, but with the 3/16" straight shank and from M42 high speed steel, popular in the United Kingdom.

350 Series

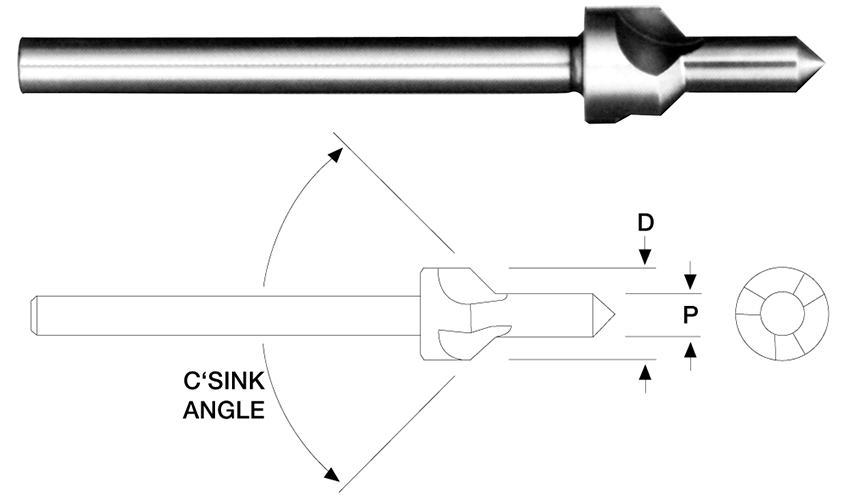

TOOL NUMBER
"D" BODY DIA.
C'SINK ANGLE
"P" PILOT DIA.
350-3/16-90°-3/32
3/16
90°
3/32
350-3/16-100°-3/32
3/16
100°
3/32
350-3/16-120°-3/32
3/16
120°
3/32
350-.190-100°-3/32
.190
100°
3/32
350-1/4-90°-1/8
1/4
90°
1/8
350-1/4-100°-3/32
1/4
100°
3/32
350-1/4-100°-1/8
1/4
100°
1/8
350-1/4-120°-1/8
1/4
120°
1/8
350-.252-100°-1/8
.252
100°
1/8
350-.2830-100°-#10
.283
100°
#10
350-5/16-90°-5/32
5/16
90°
5/32
350-5/16-100°-1/8
5/16
100°
1/8
350-5/16-100°-5/32
5/16
100°
5/32
350-5/16-120°-5/32
5/16
120°
5/32
350-.340-100°-5/32
.340
100°
5/32
350-3/8-90°-3/16
3/8
90°
3/16
350-3/8-100°-3/32
3/8
100°
3/32
350-3/8-100°-1/8
3/8
100°
1/8
350-3/8-100°-5/32
3/8
100°
5/32
350-3/8-100°-3/16
3/8
100°
3/16
350-3/8-120°-3/32
3/8
120°
3/32
350-3/8-120°-1/8
3/8
120°
1/8
350-3/8-120°-5/32
3/8
120°
5/32
350-3/8-120°-3/16
3/8
120°
3/16
350-.405-100°-3/16
.405
100°
3/16
350-7/16-100°-7/32
7/16
100°
7/32
350-7/16-100°-1/4
7/16
100°
1/4
350-1/2-90°-1/4
1/2
90°
1/4
350-1/2-100°-3/32
1/2
100°
3/32
350-1/2-100°-1/8
1/2
100°
1/8
350-1/2-100°-5/32
1/2
100°
5/32
350-1/2-100°-3/16
1/2
100°
3/16
350-1/2-100°-1/4
1/2
100°
1/4
350-1/2-120°-1/4
1/2
120°
1/4
350-.530-100°-1/4
.530
100°
1/4

2-1/2" overall length * 1-3/4" shank length * 3/16" shank diameter * 3/8" pilot length

Special sizes and angles priced on application.
