Plain Pilots for Reverse Countersinks and Spotfacers

185 Series

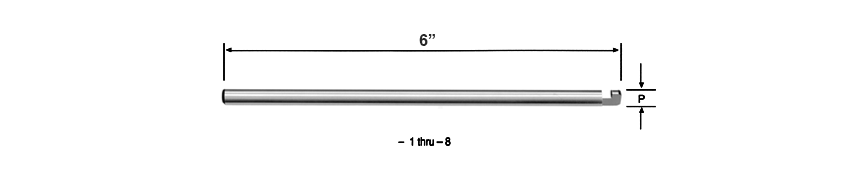

185 SERIES plain pilots are designed for use with 180 and 181 series reverse countersinks and 190 and 191 Series reverse spotfacers. Featuring the popular bayonet lock, these pilots are completely interchangeable among the four reverse cutter series. The large pilots (5/8 and 3/4) are furnished with the "double drive" bayonet lock and are 8 inches long overall.

PLAIN PILOT NUMBER
"P" PLAIN PILOT DIAMETER
185-1
3/32
185-2
1/8
185-3
5/32
185-4
3/16
185-5
1/4
185-6
5/16
185-7
3/8
185-8
1/2
 185-9*
5/8
  185-10*
3/4

*Furnished with "double drive" bayonet lock
