Solid Carbide Integral Pilot

150 SC Series

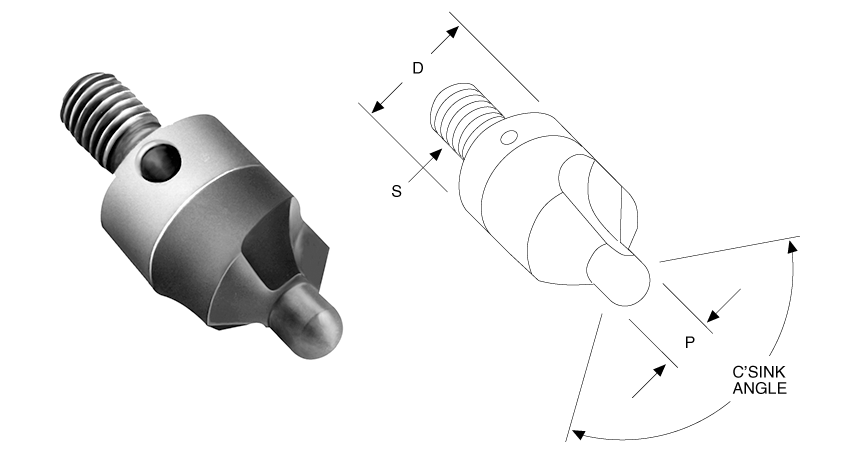

Integral pilot, threaded shank

150SC SERIES
is similar in design to the 150CT Series except this tool is made with solid carbide head butt brazed to steel shank giving pilot equal wear resistance to cutting edge. Two flute 100 degree angle is standard. Three flute and special angles subject to quote.

150 SC SERIES
TOOL NUMBER
"D" BODY DIA.
"S" SHANK SIZE
PILOT RANGE
150SC
3/8
1/4-28
3/32 - 3/16
151SC
7/16
1/4-28
3/32 - 3/16
152SC
1/2
1/4-28
3/32 - 1/4
153SC
5/8
1/4-28
5/32 -5/16
155ASC
3/4
3/8-24
1/4 - 3/8
156ASC
7/8
3/8-24
1/4 - 7/16
157ASC
1
3/8-24
5/16 - 1/2



150 SC SERIES (METRIC)
TOOL NUMBER
"D" BODY DIA.
"S" SHANK SIZE
PILOT RANGE
M152SC
14
M8 x 1
2.38 - 6.35
M153SC
17
M8 x 1
3.96 - 8.00
M155SC
21
M8 x 1
6.35 - 10.00


HOW TO ORDER THREADED SHANK INTEGRAL PILOT COUNTERSINK CUTTERS
When ordering please specify: Tool number, Number of flutes, Material, Included angle and Pilot diameter
Example: 152 - 2SC - 100° - 3/16 = 1/2 x 100 x 3/16, Solid Carbide, 1/4-28, 2flute.
Standard pilot diameters 3/32, 1/8, 5/32, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, #40, #30, #21, #11, #10

Please complete the information below and click "submit" to send Special Order Countersinks or to upload your prints. If you have any questions contact one of our sales representatives at 310-322-0614
